Oil Gas Fired Steam Boiler

The core working principle of oil gas fired steam boiler is fuel combustion heat exchange for steam generation. The Burner fully burns fuels such as natural gas, LPG, or diesel oil, producing high-temperature flame and flue gas. Forced convection heat exchange is carried out in the furnace and smoke pipes, heating the water in the boiler liner into saturated steam at rated pressure. Equipped with automatic control system, safety devices and flue gas recovery structure, it realizes fully automatic operation of combustion, water supply, steam production, pressure regulation, blowdown and safety protection. The design and production strictly comply with Boiler Safety Technical Code TSG 11-2020, ISO 9001 and standards of International Electrotechnical Commission (IEC). It is the most commonly used thermal equipment in industrial production, hotel heating, chemical, food, textile, hospital and other fields.

1. AIX Boiler: Strength of Export-oriented Source Factory

AIX BOILER is a modern source factory focusing on R&D, production and export of thermal energy equipment. It has standardized production workshop, CNC processing production line, boiler testing laboratory and professional R&D team. With more than ten years of experience in oil gas fired steam boilers, our products have passed CE, ISO, BV and other international certifications, which can adapt to different voltages, fuels and emission standards worldwide, support multi-language operation interface. Products are exported to more than 50 countries and regions such as Southeast Asia, Middle East, Africa, Europe and South America.

As an export-oriented source factory, we have no middlemen price difference. All boilers adopt high-quality steel, imported burners and intelligent control systems. We can provide OEM/ODM customization services, from tonnage, pressure, size, fuel to control system can be customized according to demand, providing global customers with safe, efficient, energy-saving and environmental protection one-stop steam solutions.

2. Core Technical Parameter Table of AIX Oil Gas Fired Steam Boiler

3. Product Structure and Core Advantages

1. Three Pass Wet Back Structure, High Heat Exchange Efficiency

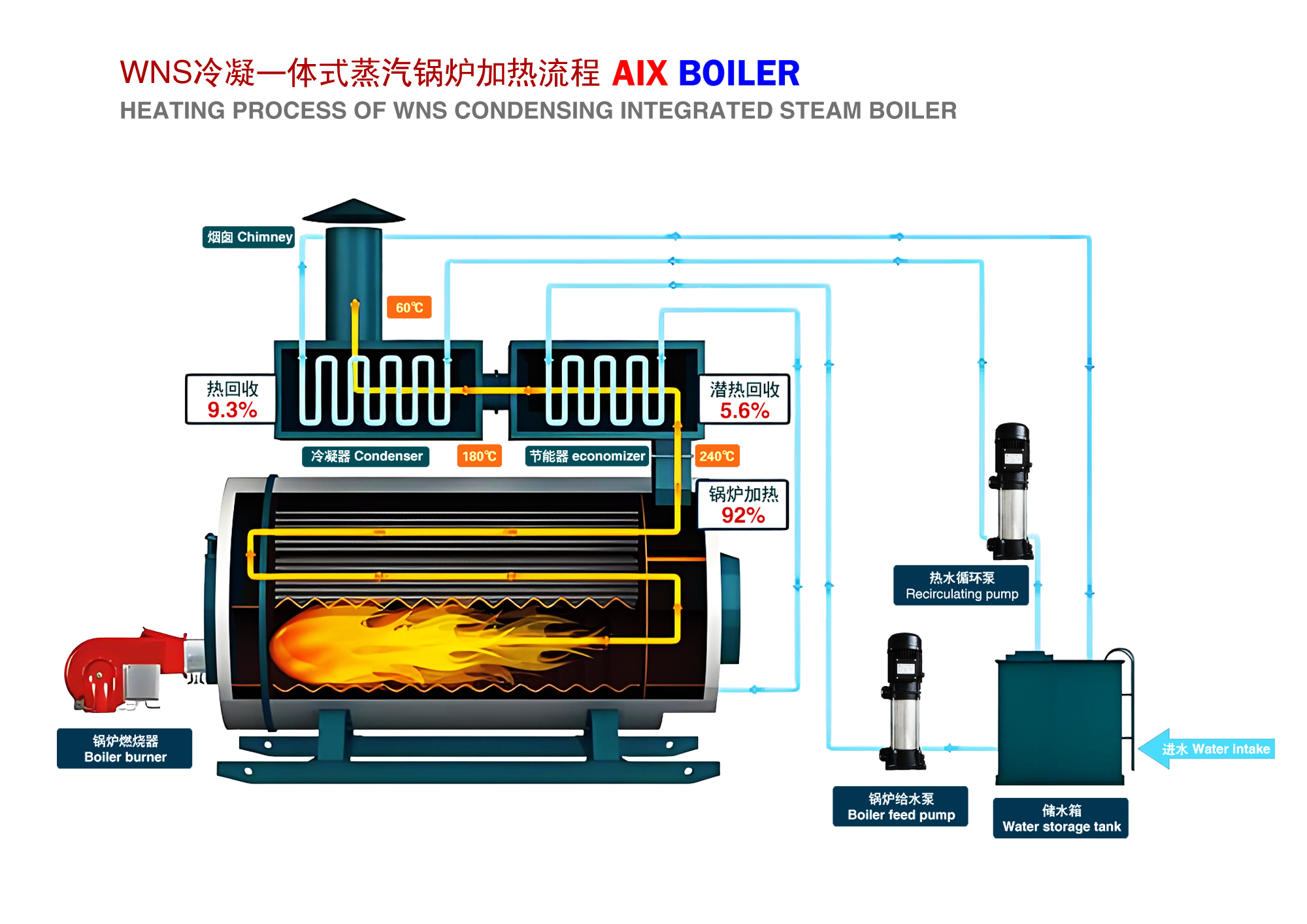

Adopt international mainstream three pass wet back structure, large furnace design, with threaded smoke pipe to enhance heat exchange, long flue gas flow, full heat exchange, thermal efficiency up to 95%-97%, saving more than 15% energy than ordinary boilers, greatly reducing operating costs.

2. Fully Automatic Intelligent Control, Unattended

Equipped with PLC touch screen / intelligent controller, realize automatic ignition, automatic water supply, automatic combustion, automatic pressure regulation, automatic fault alarm. Automatic protection for water shortage, overpressure, overtemperature, flameout, safe and reliable operation, no special personnel on duty.

3. Low NOx Environmental Protection, Meet Global Emission Standards

Optional low NOx burner, low nitrogen oxide emissions, meet environmental protection requirements in Europe, Middle East, Southeast Asia and other regions, smokeless, low noise, full combustion, green and environmental protection.

4. Safe and Reliable, Long Service Life

The boiler body adopts high-quality special steel plate for boiler, welds are 100% non-destructive tested, equipped with multiple safety protections: water level protection, pressure protection, flameout protection, leakage protection, ensuring long-term stable operation, service life up to 15-20 years.

5. Export Customization, Global Adaptation

Support 110V-480V global voltage, 50/60Hz dual frequency, customizable English, Arabic, Russian, Spanish operation interface, adapt to different national power grids and usage habits.

4. AIX Boiler Full Process Export Service System

1. Professional Customization: Customize solutions according to customer working conditions, fuel, steam volume and emission standards

2. Complete Qualifications: Provide CE, ISO, commodity inspection, customs declaration data, multi-language manuals

3. Strict Inspection: Each boiler passes hydraulic test, air tightness test, 72-hour trial operation

4. Export Packaging: Moisture-proof, shock-proof, rust-proof professional packaging, suitable for sea/land/air transportation

5. Global After-sales: 7×24 hours English technical support, remote commissioning, lifelong parts supply

5. Executive Standards and Authority Certifications

• National Standards: GB/T 1576-2018 Industrial Boiler Water Quality, TSG 11-2020 Boiler Safety Technical Code

• International Standards: ISO 9001, IEC Electrical Standards, EN European Boiler Standards

• Export Certifications: CE, ISO, BV, SGS (Available on Request)

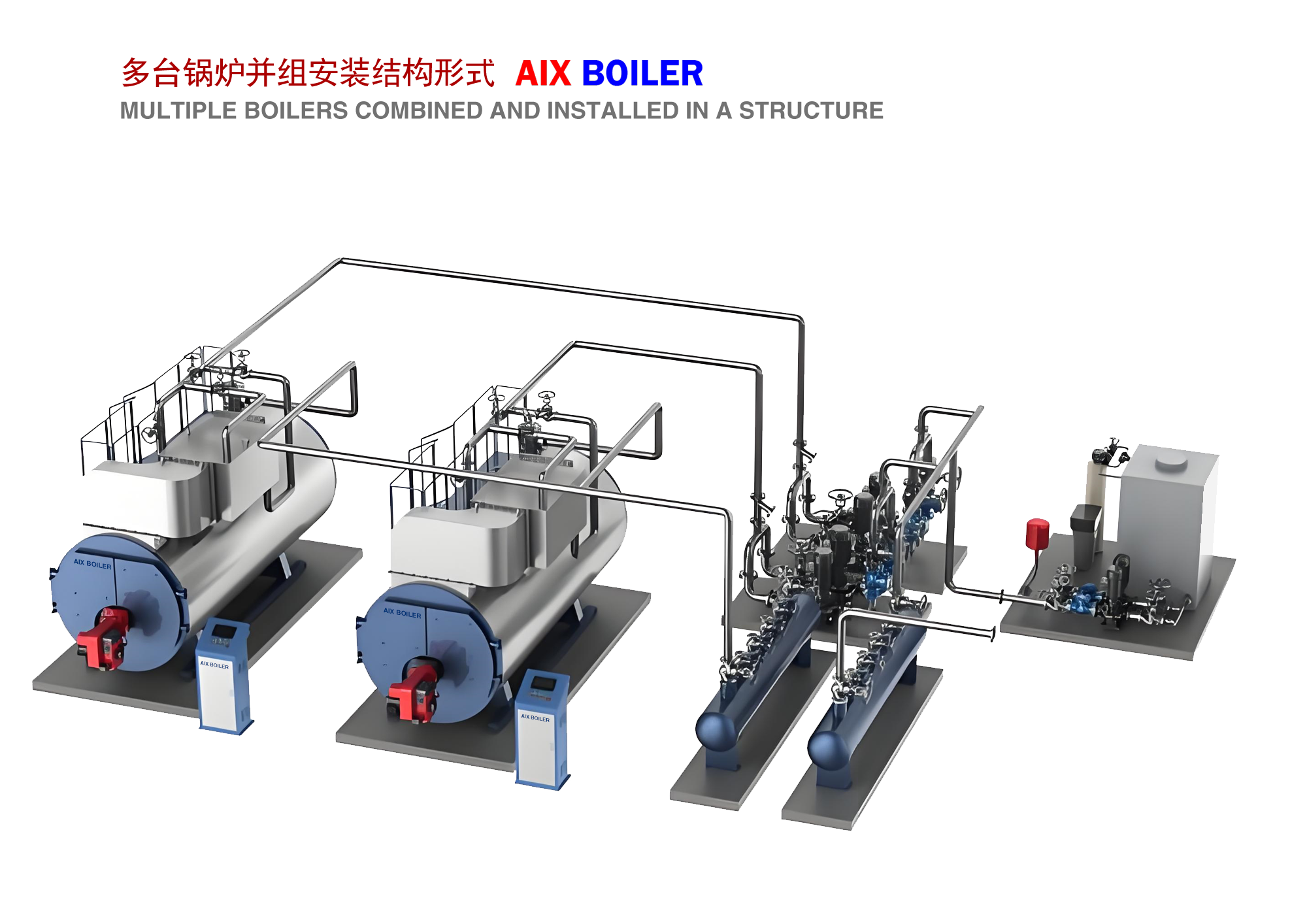

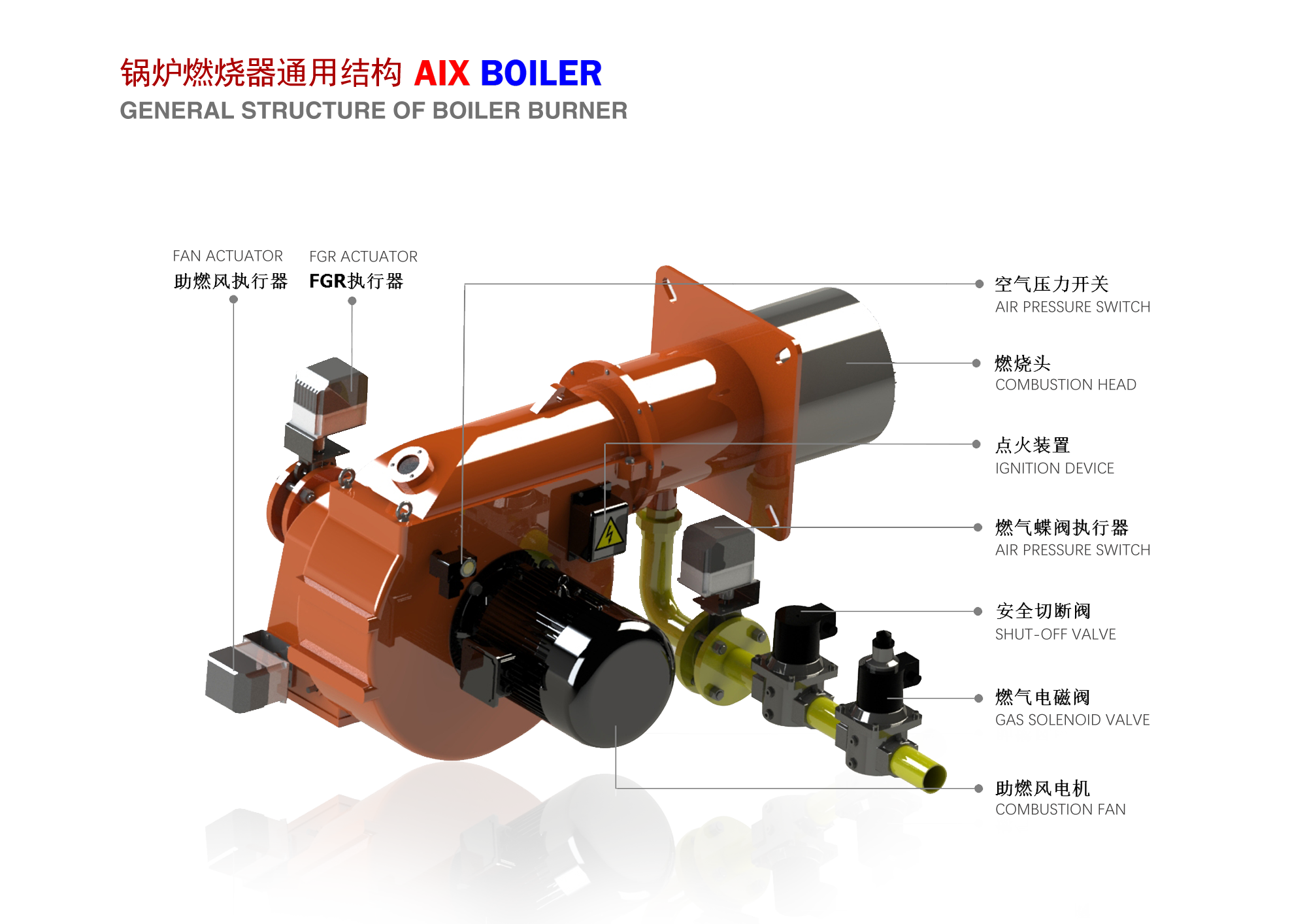

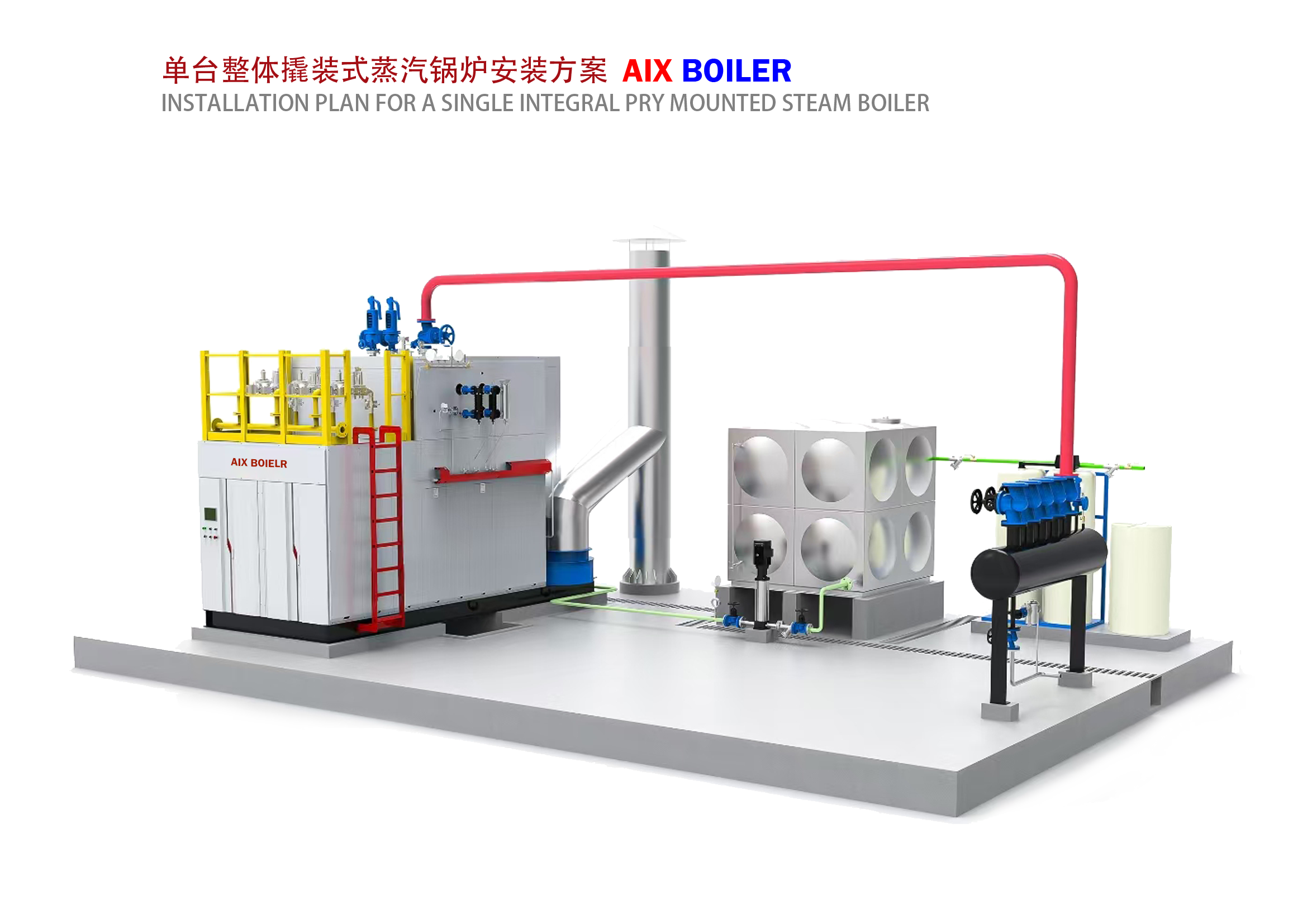

6.Graphic introduction
