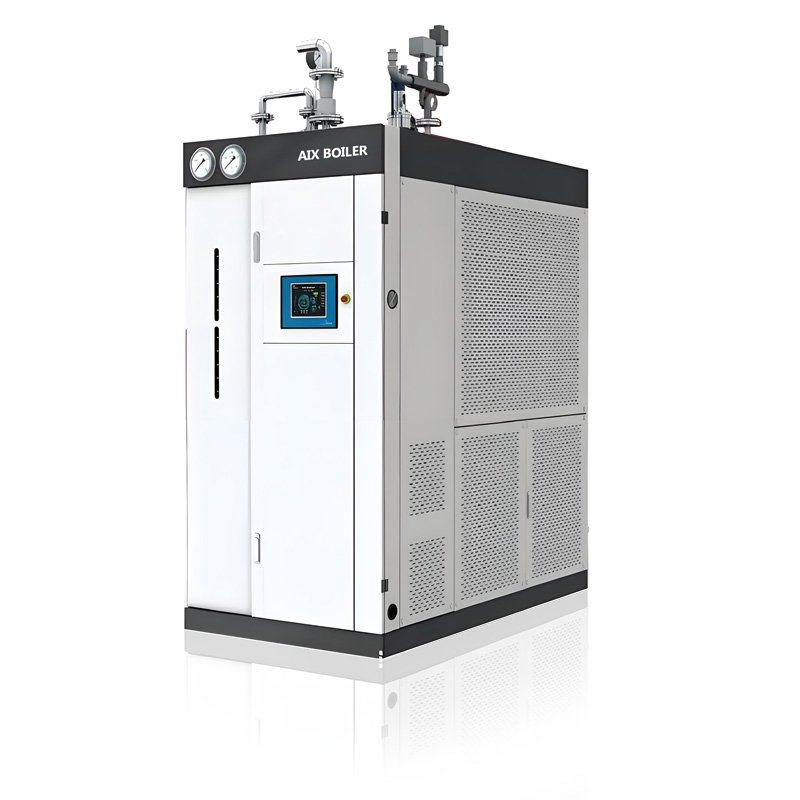

Full Premix Gas Steam Generators

Aix Boiler full premix gas steam generator operates based on the principle of full premix combustion, condensing waste heat recovery and through-flow rapid heat exchange. Gas and air are fully mixed according to precise air-fuel ratio before combustion, and complete clean combustion is realized through metal fiber surface Burner. High-temperature flue gas quickly heats water to vaporize through through-flow heat exchange structure, and the tail condensing recovery device is used to recover flue gas latent heat to quickly produce high dryness steam under normal/low pressure. The thermal efficiency of the equipment can reach 101%–108%, NOx emission<30mg/m³, water volume <30L, in line with national exemption inspection regulations. The whole generator is designed and manufactured in strict accordance with the standards of China Boiler and Boiler Water Treatment Association, NB/T 10941-2022 and TSG 11-2020, featuring safety, high efficiency, ultra-low nitrogen and extreme energy saving. As a high-end energy-saving steam equipment of Aix Boiler brand, this product is independently developed, produced and inspected by the original factory with full-chain quality control. Adopting three core technologies of full premix low-nitrogen combustion, condensing heat exchange and through-flow rapid steam generation, it is specially designed for food, medicine, chemical, hotel, textile, printing and dyeing, packaging and other scenarios with strict requirements on environmental protection and efficiency. It can fully replace traditional gas boilers, helping enterprises achieve ultra-low nitrogen emissions, energy saving, exemption inspection and stable steam supply.

1. Core Product Parameters (Aix Full Premix Gas Steam Generator)

2. Working Principle & Technical Core

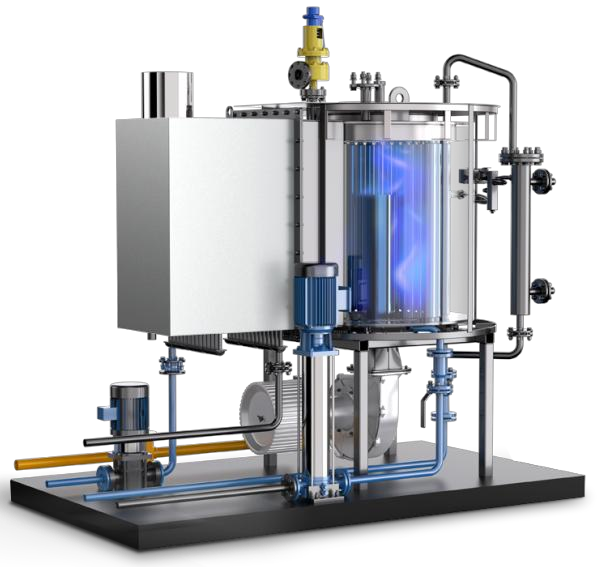

Aix full premix gas steam generator adopts three-in-one technology: full premix surface combustion + through-flow heat exchange + condensing waste heat recovery, consisting of six core parts: premix system, burner, through-flow heat exchange chamber, condensing recoverer, intelligent control system and safety accessories. Gas and air are fully mixed in the premix chamber through variable frequency fan and proportional valve to form uniform combustible mixture, which enters the metal fiber burner to realize surface thin flame combustion, with more complete combustion, more uniform flame and more stable temperature. High-temperature flue gas quickly scours the through-flow heat exchange tube, making the water in the tube vaporize instantly to produce steam; low-temperature flue gas enters the condenser to transfer latent heat to feed water for preheating, and the exhaust gas temperature is reduced to below 60℃, realizing deep waste heat recovery and thermal efficiency exceeding 100%. Equipped with high-precision intelligent control system, the generator can adjust air-fuel ratio, combustion power, water supply and steam pressure in real time, with automatic ignition, flameout protection, water shortage protection, overpressure protection and fault self-test, truly realizing unattended and stable operation.

3. Core Features & Original Factory Advantages

Full Premix Low-Nitrogen Combustion, Environmental Compliance
Gas and air are pre-mixed accurately, combustion is complete, NOx generation is suppressed, emission ≤30mg/m³, meeting the strictest national environmental standards, no denitrification equipment required, easy EIA approval.

Condensing Waste Heat Recovery, Thermal Efficiency Over 100%
Deeply recover latent heat of water vapor in flue gas, thermal efficiency up to 101%–108%, 15%–30% more gas-saving than traditional boilers, significantly reduce operating costs, short investment payback period.

Water Volume ＜30L, Exemption from Inspection & Certification
Not within the scope of pressure vessel supervision, no inspection, no annual inspection, no certified boiler operator required, save approval and management costs, install and use immediately.

1–3 Minutes Ultra-Fast Steam, Ready to Use
Through-flow structure with small-capacity heat exchange, no large water tank preheating loss, cold start produces saturated steam in 1–3 minutes, suitable for intermittent and rapid steam use scenarios.

Fully Automatic Intelligent Operation, Hassle-Free
One-key start, automatic pressure regulation, automatic water supply, automatic flameout protection, fault alarm, support remote monitoring, no special personnel on duty, reduce labor costs.

Compact Structure, Small Footprint, Easy Installation
Modular design, small size, light weight, only 1/5 of the floor space of traditional boilers, can be put into use by connecting water, electricity and gas, suitable for renovation and limited space scenarios.

Strong Support from Original Factory
Aix Boiler independent R&D and production, core technology controllable, no middleman price difference, transparent price, stable supply, provide full-program customization and lifelong technical support.

4. Application Scenarios & Industry Solutions

With core advantages of ultra-low nitrogen, high efficiency, exemption inspection, ultra-fast steam, Aix full premix gas steam generator is widely used in:

• Food Processing: Cooking, sterilization, drying, distillation, disinfection

• Pharmaceutical & Biology: Medicine drying, sterilization, purification, constant temperature

• Hotel & Resort: Hot water, heating, disinfection, linen drying

• Textile Printing & Dyeing: Setting, drying, cooking, humidification

• Chemical & Coating: Reaction heating, heat preservation, curing, cleaning

• Packaging & Printing: Laminating, bronzing, drying, hot pressing

• Catering Central Kitchen: Cooking, disinfection, hot water supply

• School & Hospital: Heating, hot water, disinfection and sterilization

5. Manufacturing Process & Quality Compliance

Aix full premix gas steam generator adheres to lean manufacturing in original factory, adopting 304/316L stainless steel heat exchange and condensing components, high temperature resistance, corrosion resistance, not easy to scale; burner adopts imported metal fiber material, long service life and stable combustion; the whole machine passes four tests: air tightness test, combustion commissioning, safety protection verification and energy efficiency measurement before delivery, qualified factory, provide test report and certificate, worry-free acceptance.

6. Operation, Maintenance & After-sales Service

The equipment uses clean soft water, regularly cleans the filter and condenser, keeps the air duct and burner clean for long-term stable operation. As the original factory of full premix gas steam generators, Aix Boiler provides free scheme design, installation and commissioning, operation training, 12-month warranty, lifelong maintenance, fast spare parts supply and other one-stop services, making users worry-free throughout the process.

7.Graphic introduction

Choose Aix full premix gas steam generator, choose a modern steam solution that is efficient, energy-saving, low-nitrogen and exemption from inspection. Welcome new and old customers to contact us!
